884

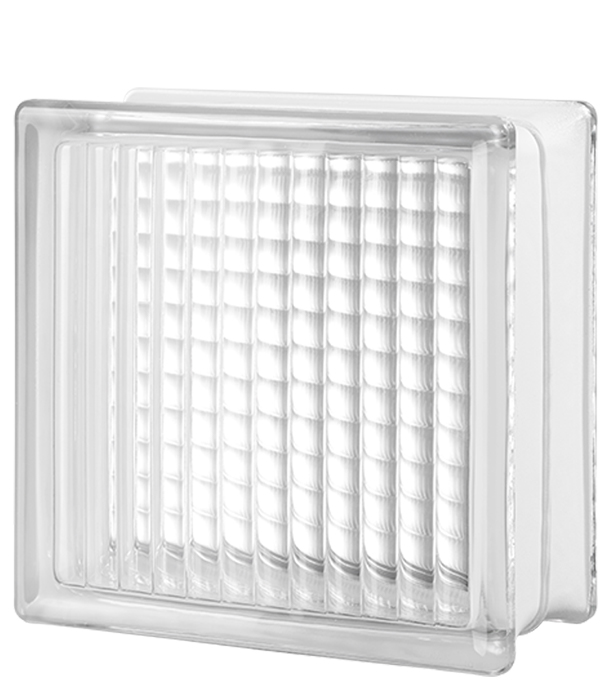

Cross Ribbed
Vertical ribs on one face and horizontal on the other for excellent privacy
"Plus" options:
Self Cleaning
New self-cleaning technology reduces cleaning and maintenance costs.CLICK HERE TO DISCOVER MORE
Solar Reflecting
Solar-reflecting glass block is made with protective cover films for applications to reduce overheating.CLICK HERE TO DISCOVER MORE
Downloads:
Technical Data
Dimensions
19,7 x 19,7 x 9,8 cm
7-3/4" x 7-3/4" x 3-7/8" in
7-3/4" x 7-3/4" x 3-7/8" in
Weight
2,70 Kg
5.8 lbs.
5.8 lbs.
N. Pieces/m2
23 pcs./m²
2.2 pcs./ft²
2.2 pcs./ft²
N. Pieces/Box
8
N. Pieces/Pallet
288
Weight m2
19.5 lbs./ft²
U value (W/m² x K)
0.48/2.08 (U/R val.)
Sound insulation
41
Fire resistance
45
Light transmittance (%:
73 to 80
Shading Coefficient
0.65
NOTE:
Seves Glassblock does not take any responsibility for handling of product´s waste after delivery to final destination.
Non-usable glass blocks and/or waste originated from glass blocks should be handled or recycled according to regulation of appropriate local authority.
Seves Glassblock does not take any responsibility for handling of product´s waste after delivery to final destination.
Non-usable glass blocks and/or waste originated from glass blocks should be handled or recycled according to regulation of appropriate local authority.
For any further information, CONTACT US
Imperial Size 4": More Glass Design in a wide variety of formats and thicknesses.
Square and rectangular formats in a variety of thicknesses and designs ensure that even the most challenging projects are aesthetically pleasing.
Realize vertical structures that are lighter, thinner, more structurally stable, and solid. Create angles, curves, or finished jambs and/ or heads.
Realize vertical structures that are lighter, thinner, more structurally stable, and solid. Create angles, curves, or finished jambs and/ or heads.
